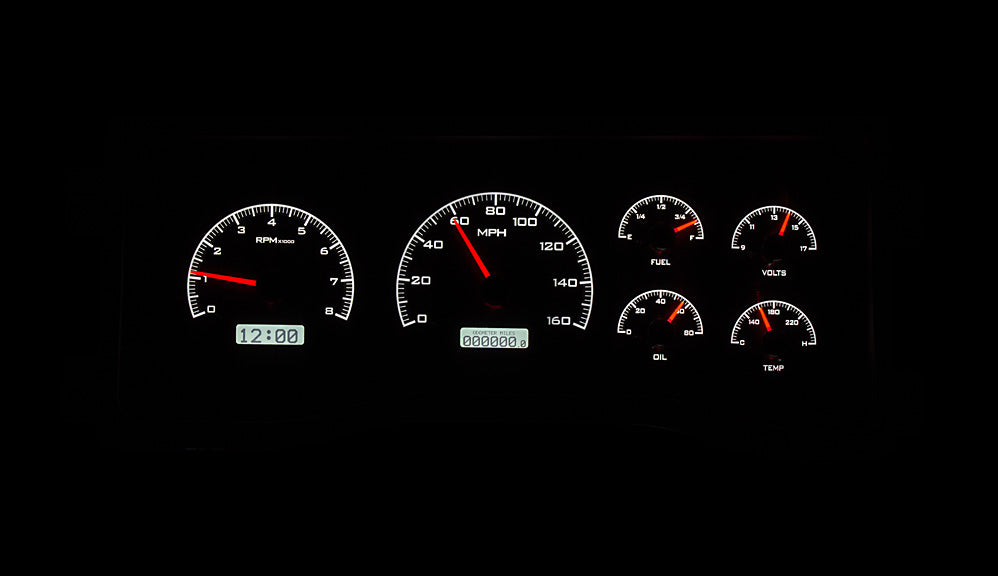

1995-98 Chevy Silverado / GMC Sierra Pickup VHX Instruments
The new VHX Systems fit directly into the stock dash of the following vehicles:
1995-98 Chevy Silverado, Sierra Pickup, 95-00 SUV and HD models,
A six-gauge, direct bolt-in replacement for 1995-98 GM pickups and ’95-00 SUV and HD models, complete with dedicated solid state sending units. This kit requires hardwiring into the stock harness; it is not a direct plug-in. Update the look of your OBS dash while adding compatibility to whatever engine and transmission you are running.

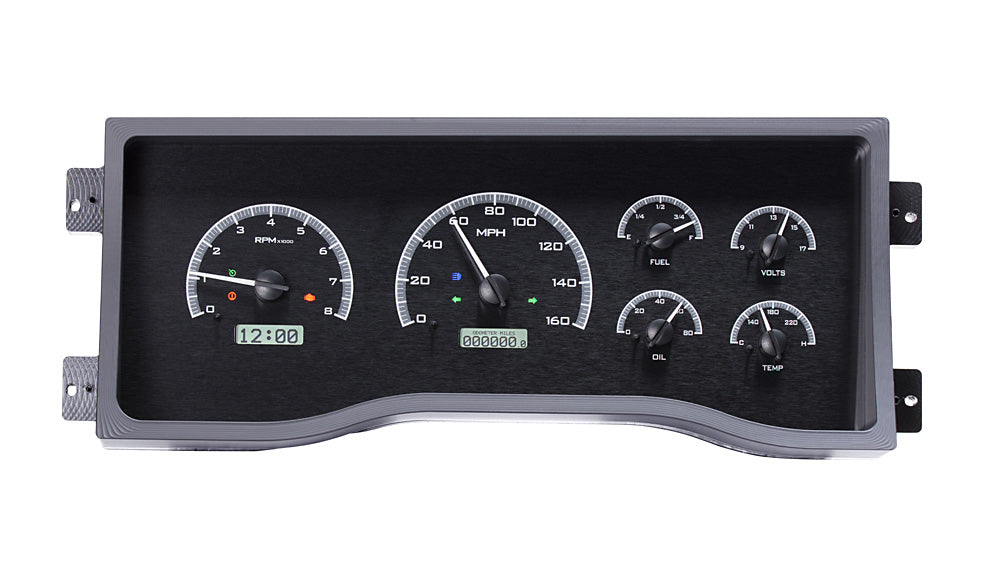

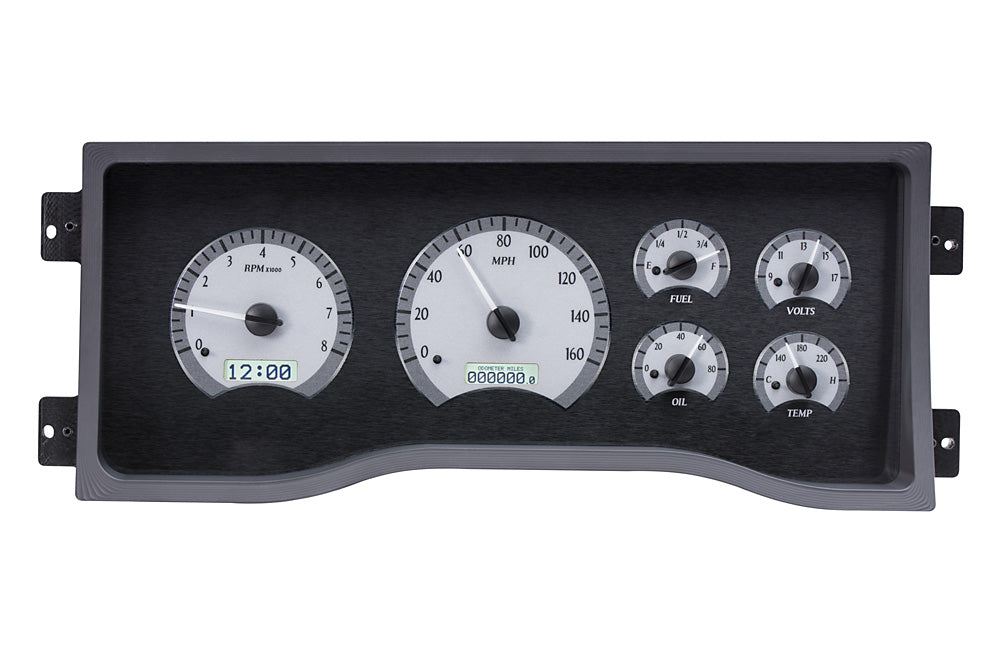

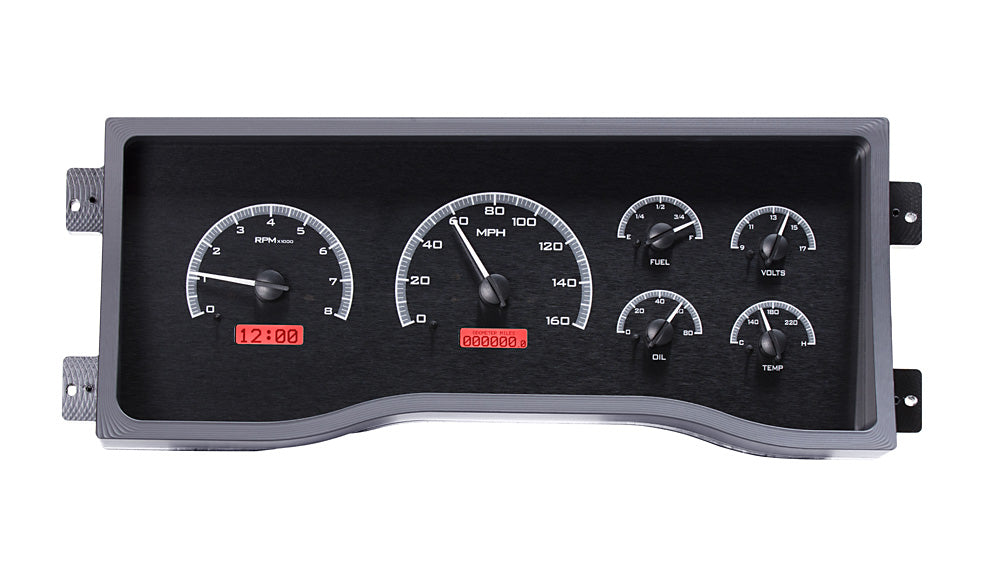

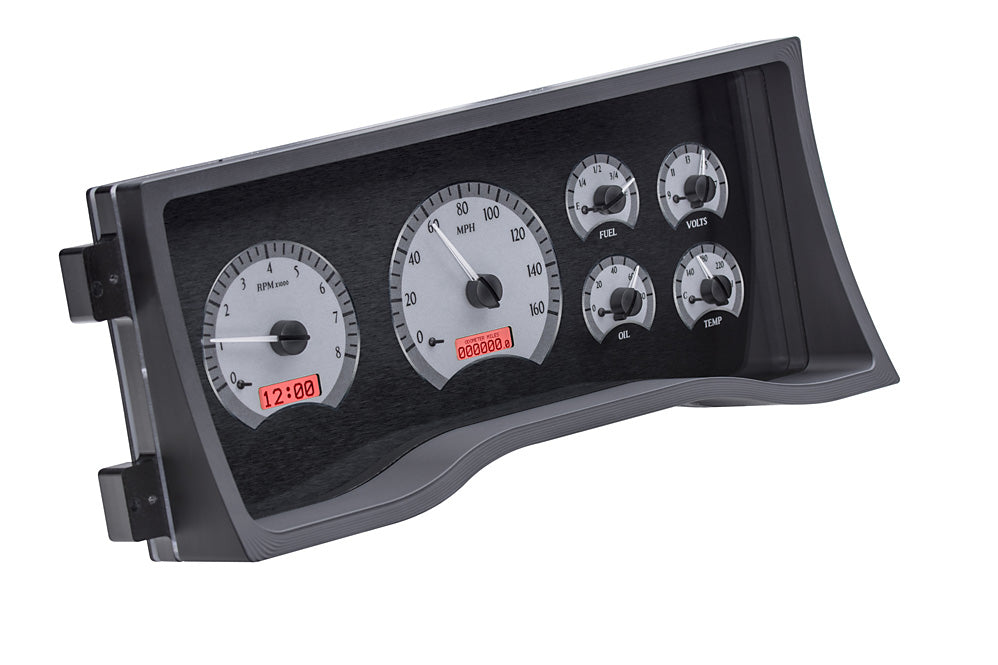

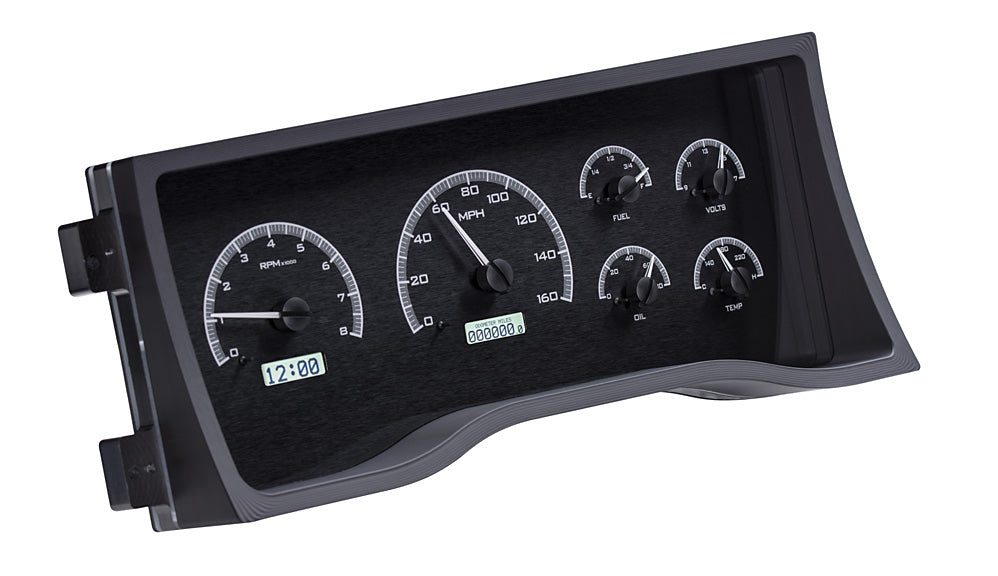

System replaces the entire factory instrument cluster and lens assembly, fully remade with a billet aluminum housing and optical grade polycarbonate lenses.

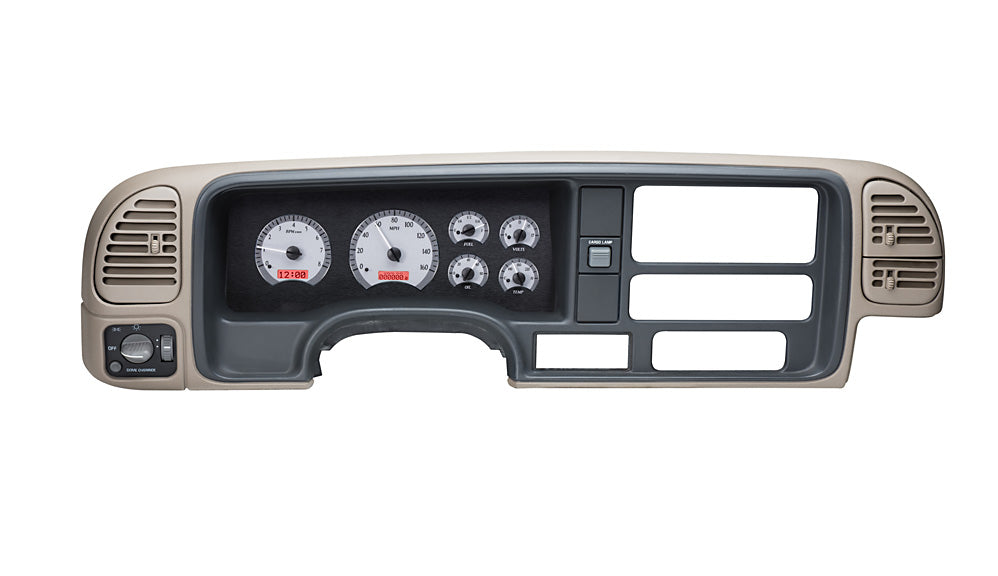

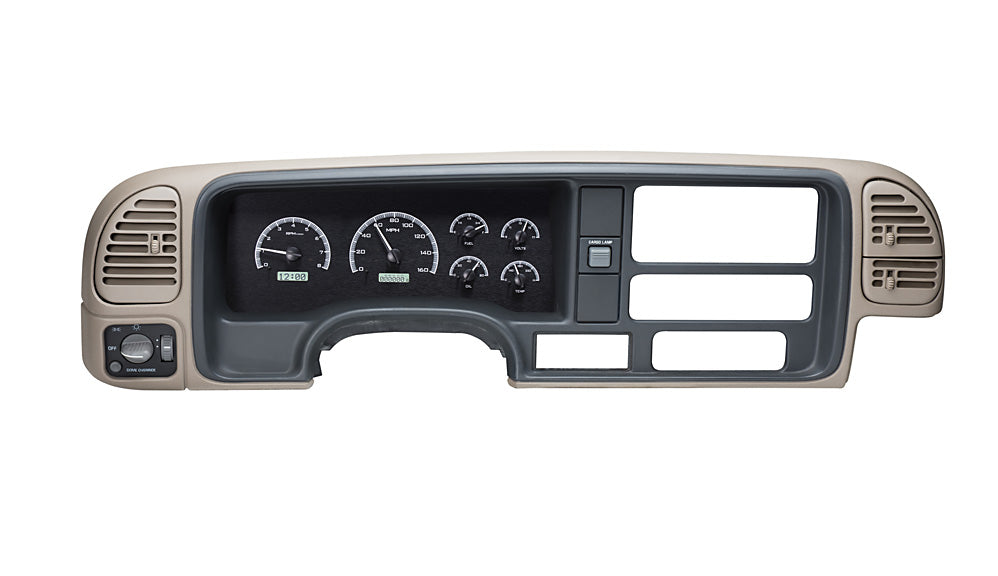

* Shown in OEM bezel/ trim/ fascia for demonstration purposes only. (not included).
![dakota digital gauges blue or red]()
![dakota digital]()
|
Analog Gauges
|
|
| Speedometer |
·0 -120 MPH (optional metric version 0- 195 kmh) |
|
| Tachometer |
·0- 8,000 RPM |
|
| Oil Pressure |
·0- 80 psi |
|
| Water Temperature |
·100- 260ºF (optional metric version 40- 120ºC) |
|
| Fuel Level |
·E, 1/4, 1/2, 3/4, F |
|
| Voltmeter |
·9- 17 VDC |
|
| Lighting |

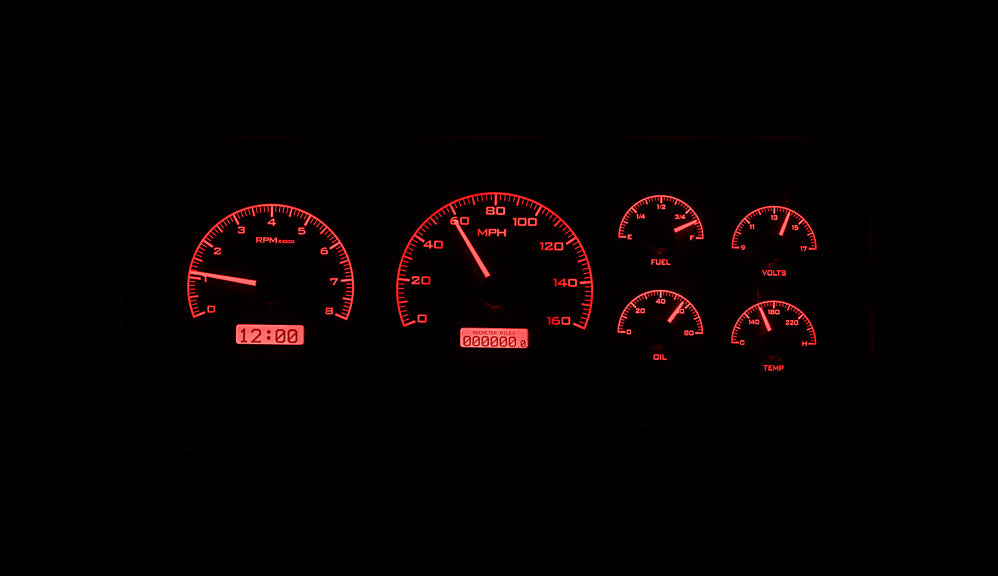

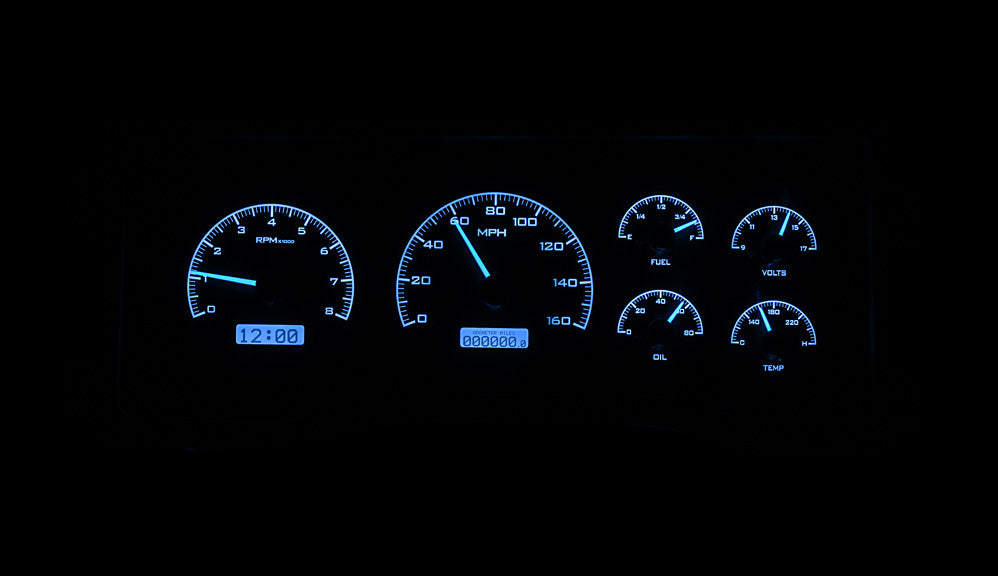

·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
|
Digital Message Centers
|
|
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
|
|
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
|
|
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
|
|
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
|
|
Built-in Indicators
|
|
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-2000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
|
|
|
Included Sensors
|
|
![]()
|
|
| Water Temperature |
·1/8" NPT, ground isolated sensor with a 10 ft harness. |
|
| Oil Pressure |
·1/8" NPT solid state sensor with a 10 ft harness. |
|
| Cable Driven Speed Sensor/ Generator |
·Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. |
|
| Bushings |
·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. |
|
|
Calibration
|
|
| Pushbutton |
·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers. |
|
|
![]()
