TrackSpec 1967-1972 Chevy C10 Roll Cage Kit

The C10 truck has become one of the hottest pro-touring builds of today. With that, safety comes to play as these trucks continue to go faster on track. The C10 Truck WELD IN ROLL CAGE kit comes with a main hoop, harness bar, A pillar bars, roof bars and your option on door bar styles. Made using .120 DOM steel, this cage kit gives maximum stiffness and protection for any racing or track situation. Options include door bar styles. Door bar style A is a single diagonal bar that terminates to the floor. Door bar style B includes full length anti intrusion bars that connect the main hoop to the A pillar bars with vertical uprights between the bars and dimple die plates

• Made of .120 wall DOM steel tubing for maximum strength.

• Includes Main Hoop, Door bars, A Pillar bars, roof bars, and DASH BAR as seen in photos. This is our full cage kit.

• Optional lower X brace to increase rigidity.

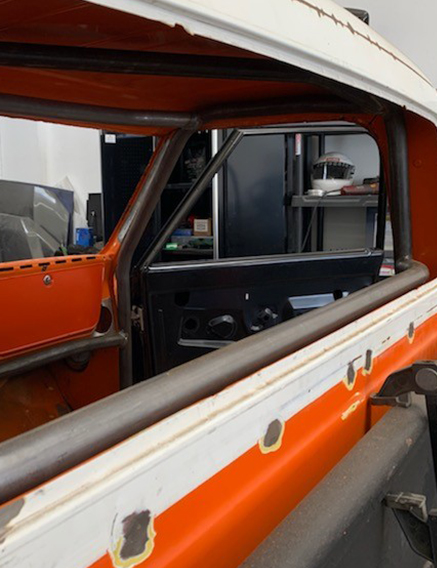

• Optional SCCA style Diagonal cross bar.

• DOOR BAR OPTIONS

• OPTION A - This is a single diagonal bar that runs from the main hoop to the floor as seen in the photos.

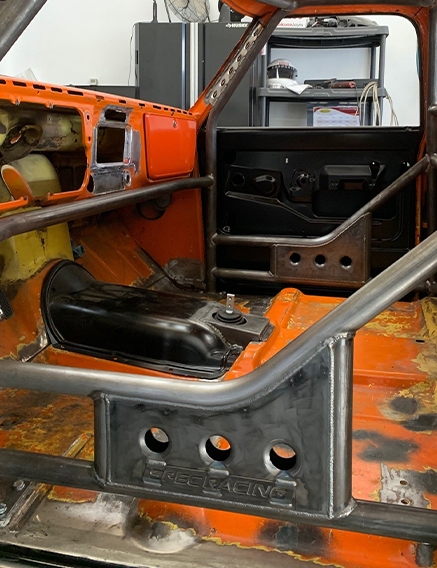

• OPTION B - This is a dual bar set up with dimple die plates and vertical tubes connecting the 2 horizontal bars.

• Includes a main hoop that fits tightly to the factory cab area.

• Welds to Frame !!! - Not shown in photos.

• Minimal impact to interior space. We moved the bar back as far as we could go.

• All bars come pre bent/notched and ready to weld in. All joints are marked for a true hold and weld experience.

• Designed and CNC Notched and bent in southern california!


---

Cage Upgrade Options:
