1979-1993 Mustang LS Swap 3-Row Radiator, Shroud, Dual Fan Combo
- Upgrade your 1979-1993 Fox Body Mustang with our LS Swap 3-Row Aluminum Radiator, Shroud & Dual Fan Combo. Designed for maximum cooling efficiency, this direct-fit setup delivers superior performance for high-horsepower LS engine swaps. Keep your Fox Body running cool with lightweight aluminum construction, triple-core design, and powerful dual electric fans—perfect for street or track builds.
1979-1993 Mustang 3- ROW 12" Fans & SHROUD COMBO
3-Row Core | Cools up to 750hp
Dual Pass / LS Conversions
Radiator Dimensions:
Total: 19.05" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.5" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Whats Included
- 12" Fans with 1031CFM Each
- Saddle Mounted
- 16lb. Radiator Cap included
- Steam Port with 1/4" barbed fitting and plug included
- Aluminum shroud
ALL Aluminum Core Dual-Pass Features
Add On Options
Fan Upgrades:

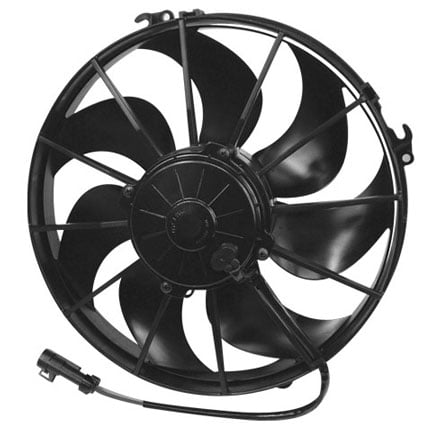

SPAL High Performance Series -3202
12" Cooling Fan
Curved Blade - Pull
Specifications:
A: Length 13.389"
B: Depth 4.397"
C: Width 13.389"
1870 CFM
AMP Draw: 38.60
Thermostat / Relay Kit:
Our Waterproof Thermostat Relay Kit turns your fans on when the temperature of the engine reaches 185° and off at 170°
POLISHED OVERFLOW TANK:
Twist-in aluminum cap ,Holds up to 18 fluid ounces, Polished Aluminum, Universal Mounting Brackets
48" Polished Stainless Steel Radiator Hose Kit:
4 Polished End Caps
4 sets of rubber inserts (to fit either 1.25", 1.5" or 1.75" radiator outlets)
16AN Hose Kit
Complete your install with a clean look braided an hose line and swivel ends.
| Engine | Chevy LS |
|---|
